Our Loft Conversion Projects
Explore our portfolio of beautifully crafted loft conversions across Essex. Each project showcases our commitment to quality, bespoke design, and attention to detail.
Browse by Category:
Rear Box Dormer Conversions
Velux Conversions
Bungalow Conversions
Bedrooms & Ensuites
Bespoke Furniture Solutions
Edwardian House in Brentwood
Spring 2018 • Rear Box Dormer • Master Bedroom & Ensuite • Study Space
We were instructed by our wonderful clients to expand on their beautiful Edwardian style home in Brentwood to create a Master Bedroom and ensuite to the loft to accommodate the needs of their young and growing family.
The Project
With mum and dad moving into their top floor sanctuary and the new 4th bedroom, the eldest of the three children was then lucky enough to be promoted into the original master bedroom on the first floor. Allowing everyone their own space, even dad who instructed us to convert the loft eaves space at the rear of the property to create a study space.

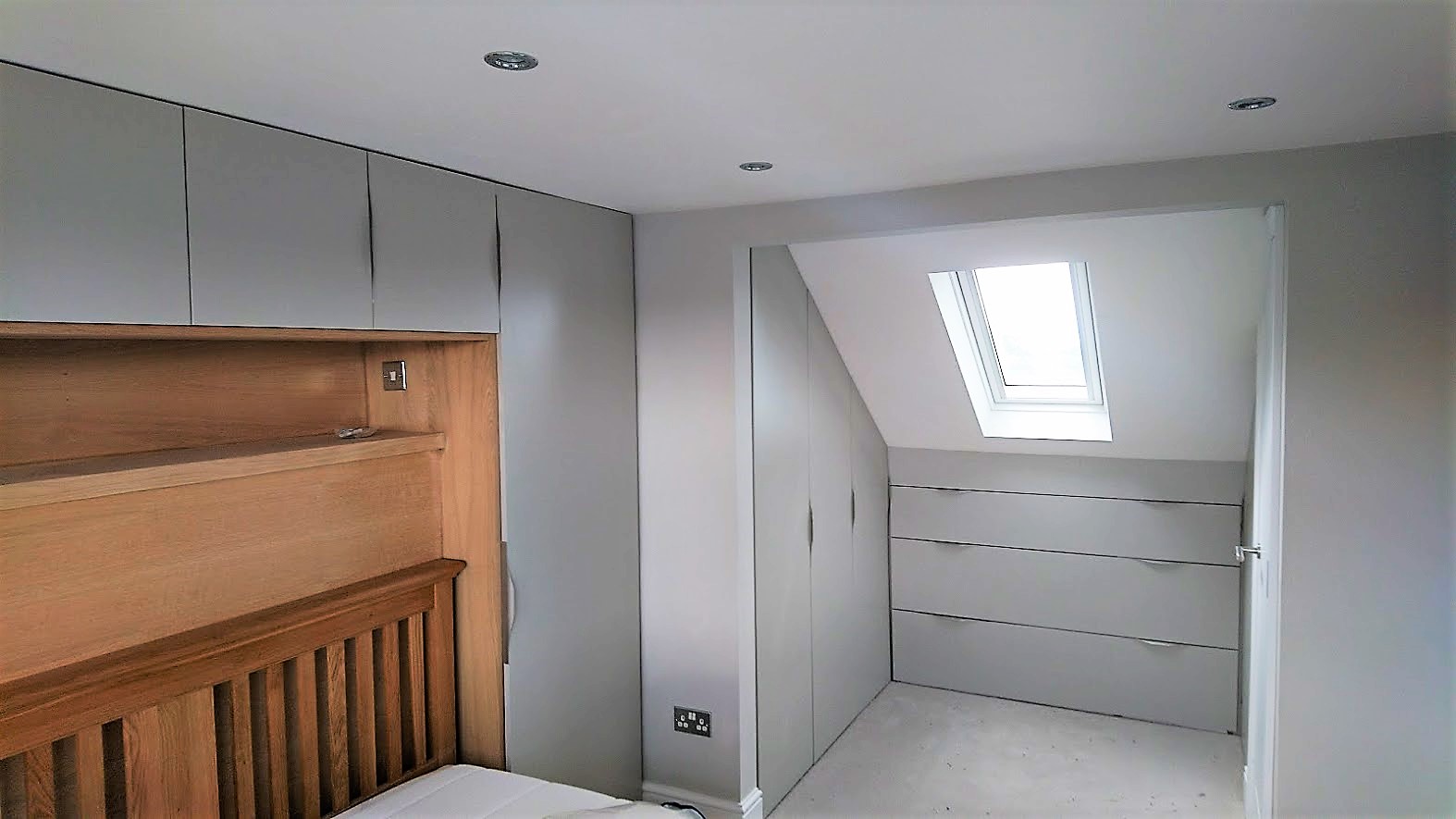

This project brief was to construct a rear box dormer to their property to allow the formation of a Master Bedroom and ensuite coming off of the new staircase which evolved seamlessly from the existing landing due to the generous space of their period property. We installed 2 Velux Windows to the front roof of the property to achieve as much natural light as possible to the space and also created bespoke furniture solutions in the eaves spaces to maximise the storage space.
Design & Finishes
The clients selected some modern beautiful finishes from local suppliers for their ensuite which are in keeping with the style of their home and the colours compliment the space and maximise the light sources to create a fresh and clean room. In the eaves study space the clients requested that we plaster all but the party wall and retain the natural brickwork, which was sealed and invokes an industrious yet natural theme to the room working well with the new Velux Roof Window.
Project Timeline
Main structural work: 6 weeks
Decorating and second fix: 4 weeks
Our tradesmen worked alongside the clients’ decorators and tilers to ensure a seamless finish.
📸 Project Gallery
Image Slider: 4-5 images of completed master bedroom, ensuite, study space, external dormer view, and Velux windows
[Upload your project images here after importing]
Master Bedroom
Velux Windows
Bespoke Furniture
Chalet Bungalow Conversion, Shenfield
Winter / Spring 2018 • Bungalow Conversion • Rear Box Dormer • Front Pitch Dormers • Kitchen Extension
With a new baby on the way, our clients decided to renovate their 2 bedroom chalet Bungalow in Shenfield to a 4 bedroom family home with full loft conversion and Kitchen / Diner that was double the size of the original ground floor layout.
The Project
With one child already at home and another on the way they decided to add a rear box dormer and two small pitch roof dormers to the front of the property which gained them 2 double bedrooms, an occasional single and new bathroom. Downstairs we overhauled and expanded the original bathroom and carried out a large rear extension to give them a wonderful space for their family to make memories in the heart of their home.
Design Features
With the use of 2 Roof Lanterns to the new extension and a 5 panel bi-fold door system they maximised the natural light and brought the outside in allowing the space to feel even bigger and breathe. The finishes they chose throughout were modern and were complimented further by the natural light sources.
Project Timeline & Evolution
Duration: 20 weeks from commencement of ground works to completion
Completed: Just ahead of the family’s new arrival
The scope did evolve as we worked with the family to give them solutions and help deliver them a home that went further than the basic plan.
📸 Project Gallery
Image Slider: 4-5 images of loft bedrooms, new bathroom, kitchen/diner extension, roof lanterns, and external view
[Upload your project images here after importing]
Rear Box Dormer
Bedrooms
Kitchen Extension
Velux to Rear Box Dormer Conversion, Brentwood
Spring 2017 • Dormer Extension • Master Suite • Balcony • Wet Room
Our clients decided to expand their large Velux Conversion, which extended to a dressing room and ensuite for their daughter who had since left home. They found the Velux conversion didn’t necessarily work for them due to height of the homeowner so decided to expand the dressing room and ensuite with a Rear Box Dormer to form a master suite.
The Challenge

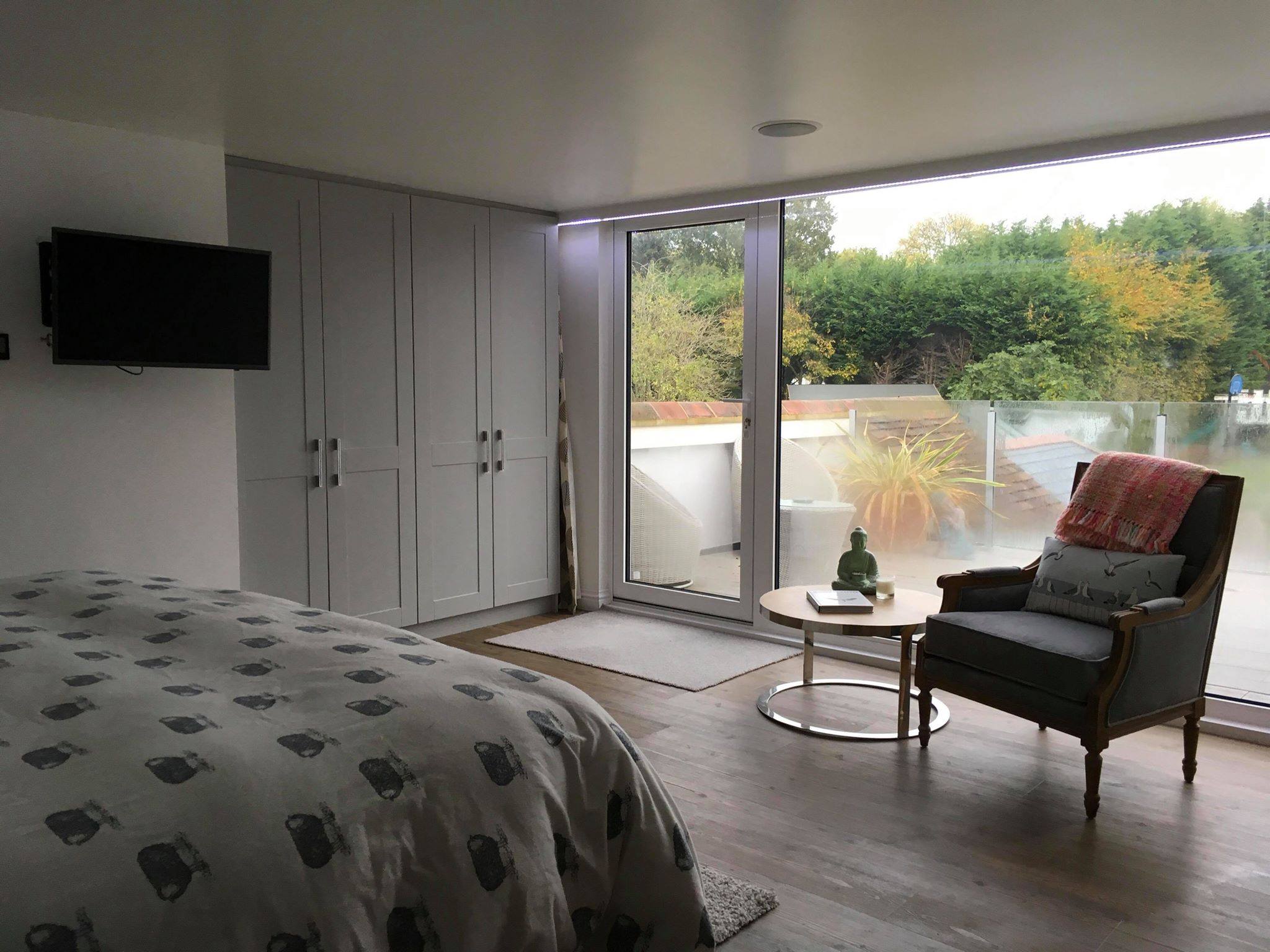

There was a lot of roof work to be carried out as the ground floor had been previously extended with a pitched roof to the Large Kitchen / Family room. This did allow them to capitalise on a large balcony to the rear over the existing ground floor between the two pitched roofs and was complimented by a fully glazed wall and floating safety balcony which allows them to enjoy the beautiful views over their garden.
Special Features
The project was enhanced further with a wet room style ensuite and bespoke carpentry solutions provided by Westbury Interiors. The fully glazed wall creates a stunning connection to the outdoor space while the floating balcony adds a unique architectural feature to the home.
📸 Project Gallery
Image Slider: 4-5 images of master suite, glazed wall, balcony view, wet room ensuite, and bespoke carpentry
[Upload your project images here after importing]
Master Suite
Wet Room
Bespoke Carpentry
Overcoming Height Obstacles Project
Bespoke Design • Tall Client Solution • Cat Slide Roof • Master Bedroom & Ensuite

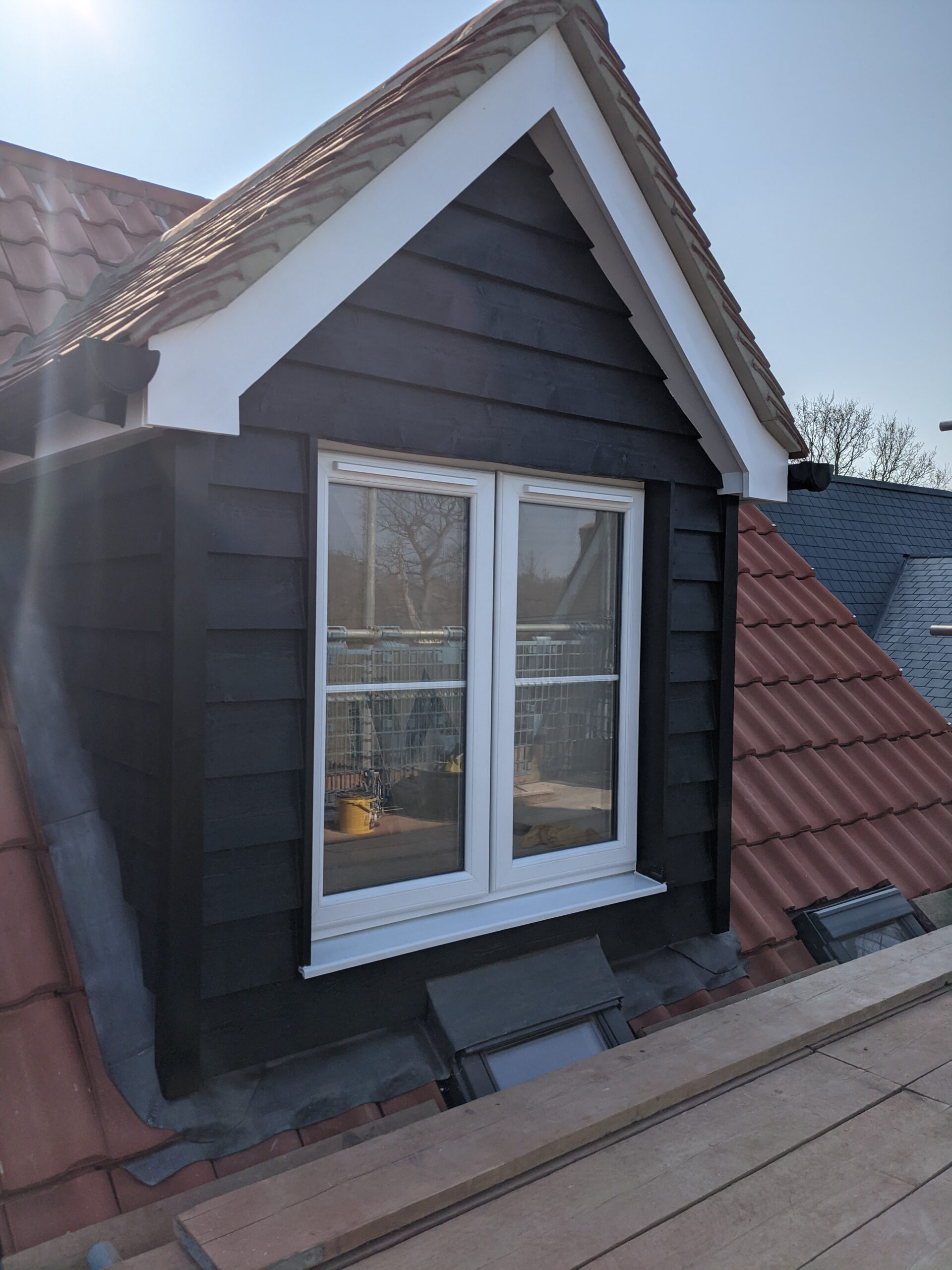

The project requested by the client was to construct a new loft conversion over an existing ground floor extension to form a master bedroom and ensuite adjacent to the existing first floor. The loft was to feature two front facing pitched roof dormers and a rear box dormer and a cat slide / shallow mono pitched roof.
The Design Challenge
This project evolved around the needs of the client. The headline reason being that quite literally he was 6’7″ tall and didn’t want to dwell in a tight space, therefore the whole design, created with this key factor in mind was built around him and achieving a sense of space that worked.
Bespoke Solutions
We lost soil pipes and all of the plumbing was hidden within the walls to ensure the space was seamless, flush, flat and linear. This attention to detail created a master suite that felt spacious and uncluttered despite the height requirements.
The combination of two front pitched roof dormers and a rear box dormer with cat slide roof created the perfect solution for maximising ceiling height throughout the space.
📸 Project Gallery
Image Slider: 4-5 images of spacious master bedroom, concealed plumbing, front dormers, rear box dormer, and cat slide roof
[Upload your project images here after importing]
Master Bedroom
Pitch Roof Dormers
Cat Slide Roof
How a Loft Conversion Proceeds
Dormer Conversion – Typical Time Span: 6 to 8 Weeks
Every loft conversion is slightly different, however we have created a timetable of a loft conversion that contains the most common stages and steps that your loft conversion is likely to go through:
Scaffolding Erection
Works will commence with the erection of independent scaffolding.
First Material Delivery
Delivery of structural steels, joisting timbers, etc.
Roof Opening & External Works (3-4 Weeks)
An opening is made in the roof for access – initial works are completed externally, so minimising internal disturbance.
Floor Joisting & Building Control Inspection
Floor joisting carried out – following which the local authority Building Inspector will visit to approve floor construction.
Dormer Construction & Insulation
If a dormer conversion, the dormer will next be constructed, insulation installed, followed by a further inspection by the Building Inspector.
External Works Completion
Completion of external works – ie roofing of dormer, lead work, fascias, soffits, guttering.
Internal Studwork & Insulation
Internally, erecting studwork walls, forming bedrooms/ensuite/stairwell access. Insulating walls to required standard.
Window Installation
Fitting dormer windows/Velux windows.
Staircase Installation
Creating access to facilitate installation of new staircase and fitting new stairs.
First Fix Electrical & Plumbing
Installing new cabling for lighting, sockets, Expelair, smoke alarms etc. First fix plumbing to new ensuite and additional radiator(s).
Plastering
Plastering all new areas.
Second Fix Carpentry
Second fix carpentry works – ie skirtings, architraves, doors, handrail, spindles etc.
Second Fix Electrical & Plumbing
Second fix works for electrics (UPVC fittings installed) and plumbing (sanitary ware, radiators etc).
Clearing Down & Guttering
Clearing down – including guttering inspection.
Final Building Control Inspection
Final inspection by Building Inspector who issues Completion Certificate (all works having complied with building and fire regulations). The new loft is now ready for decoration and habitation.
Do I Require Planning Permission for a Loft Conversion?
A number of factors must be taken into consideration when asking “Do I need planning permission for my loft conversion?”
✓ You Would NOT Normally Need Planning Permission If:
- The house is a single family dwelling and not a flat or maisonette
- The proposed extension or dormer window should not be raised above the highest part of the roof
- The slope of any part of the roof, which faces a highway, must not be extended
- The loft conversion does not amount to more than 40 cubic meters in the case of a terraced house or 50 cubic meters in any other case (measured externally)
- When combined with any other existing extension to a house does not exceed the permitted development allowance
⚠ You WILL Need to Apply for Planning Permission When:
- Your property is a flat
- The existing ridge line to your roof needs to be raised
- The slope or any part of the roof which faces a highway is to be altered
- The proposed loft conversion exceeds 40 cubic meters in the case of a terraced house or 50 cubic meters in any other case (measured externally)
- When the proposed loft conversion combined with any other existing extension to a house exceed the permitted development allowance
- The building is listed as being of special architectural or historic interest
- The building is situated in a conservation area
- The permitted development rights of your property are restricted by conditions attached to a previous planning permission or your property deeds
- An “Article 4 Direction” covers the building
Certificate of Lawful Development
It is worth considering that many Councils do grant a Certificate of Lawful Development which is becoming increasingly common practice and is applied for with architectural plans.
Lawful development certificates are certificates issued by local planning authorities which certify that a proposed or existing development is lawful. They can be useful to those thinking of developing their land and / or considering whether a proposed or existing use or operation is lawful, perhaps in anticipation of selling or purchasing land.
We are able to recommend architects and advise them on the works you wish to have carried out and set up an introductory appointment for you should this be required.
